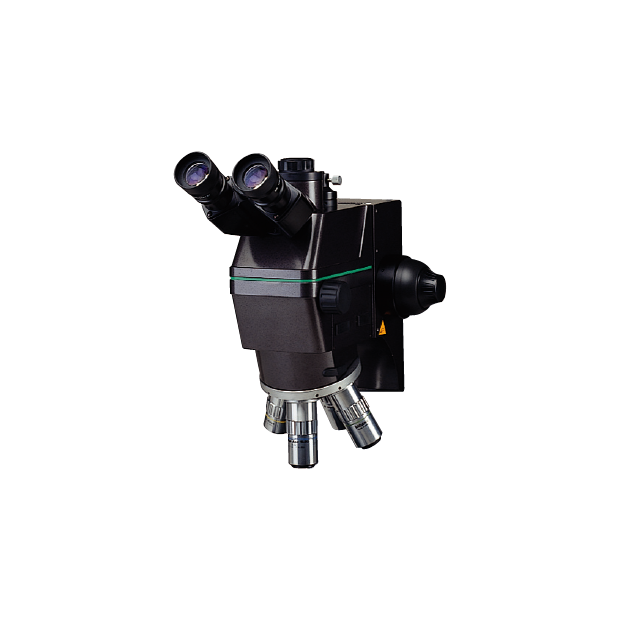

Metallographic Microscope

Metallographic Microscope

A metallographic microscope is designed for high-resolution observation of metal surfaces, specialized optics for examining polished or etched samples, and the ability to analyze material structures at various magnifications.
/
DETAIL

Metallographic microscope

1.High resolution

2. 2000X magnification will be best performance

- Erect Image Trinocular (50/50,100/100), Erect Image Tilting Trinocular (50/50)

- Mitutoyo Infinity Corrected Optics

- Siedentopf Design Trinocular Body Tube

- Widefield (FN=24) 10X Eyepieces

- Main Body 1X for Three YAG Laser Wave lengths 1064/532/355nm*

- Brightfield Objective Magnification Selections from 1X to 200X

- Extra Long Working Distance Plan Apochromat Objectives

- Laser Cutting Objectives

- Long Working Distance Plan Objectives for IR, NIR, UV and NUV applications

- Differential Interference Contrast (DIC) Option for Nonlaser Configurations

- Reverse 4X Nosepiece

- Optional Motorized 4X Centerable Nosepiece

- Six-foot Cable Remote Intensity Control for Fiber Optic Illuminato

- Concentric Coarse and Fine Focus

 –0.1mm Rev /Fine Focus- Manual Focus Block
